Are you searching for original DZ Meccanica products in the UK? At RADWARD LTD, we offer a wide range of industrial solutions, including Axial force limiters. As an independent supplier, we provide original DZ Meccanica equipment at competitive prices to meet the diverse needs of businesses across the United Kingdom.
DZ Meccanica is renowned for its high-quality and efficient industrial equipment, widely used in the UK's manufacturing and production sectors. From Axial force limiters to other essential industrial components, DZ Meccanica offers solutions that enhance efficiency and reliability.
By choosing RADWARD LTD as your supplier, you gain access to a broad range of DZ Meccanica products without the limitations of official distribution channels. This allows us to offer better prices, faster delivery, and personalised service across the UK.
We have a wide selection of DZ Meccanica products suitable for various industrial applications. Whether you need Axial force limiters or other specialised equipment, our inventory is designed to support the operational efficiency of your business.
No matter where your business is located, RADWARD LTD is committed to providing you with the DZ Meccanica products you need. Our efficient distribution network enables us to deliver promptly to major industrial hubs like Sheffield, Bristol, Milton Keynes, Cambridge, Nottingham, London, Leeds/Yorkshire, Liverpool, Derby, Northampton, Poole, Coventry, Leicester, Birmingham, Southampton, Manchester, and Telford.
Ready to purchase DZ Meccanica products or need more information? Contact us today. You can call us at +44 20 81571300 or send an email to sales@enapart.co.uk. Our expert team is ready to help you find the perfect solutions for your industrial needs.
For customised pricing and product information, please fill out our contact form or give us a call. We are dedicated to providing solutions tailored to your specific requirements.
While we are not the official distributor or seller of DZ Meccanica in the United Kingdom, we source our products from reliable channels and offer you original DZ Meccanica equipment at competitive prices.
You can purchase DZ Meccanica products from RADWARD LTD. We offer a wide range of original DZ Meccanica products to meet your industrial needs.
You can access catalogues, user manuals, and technical documents for DZ Meccanica products on our website. Visit our resources section or contact us directly for specific documents.
Warranty terms may vary depending on the product. Please contact us for detailed information about the warranty coverage of the DZ Meccanica products you are interested in.
While we do not offer direct technical support, we can facilitate communication between you and the manufacturer to ensure you receive the assistance you need.
RADWARD LTD is an independent supplier of DZ Meccanica products and is not affiliated with or authorised by the official distributor. All trademarks and brand names are the property of their respective owners.
Enapart is not an authorized distributor of DZ Meccanica in the United Kingdom ; all rights are reserved by DZ Meccanica 's manufacturers and official partners. Enapart, with a presence in 14 countries, sources products from around the world to offer you the best possible prices as a local reseller in the United Kingdom .
| Product | UNIT PRICE | Delivery |
|---|---|---|
| 01242133-050015050 | GBP 241.24 | 6 - 8 Weeks |
FEATURES
Immediate drive stop
Disengage signalled by microswitch or inductive sensor
Gradual adjustment of the disengaging force (from 50 to 3000 N)
Free-of-play transmission
Compressive and/or tractive operation
Maintenance free
Dimensions and weights extremely light
Customised strokes and lengths

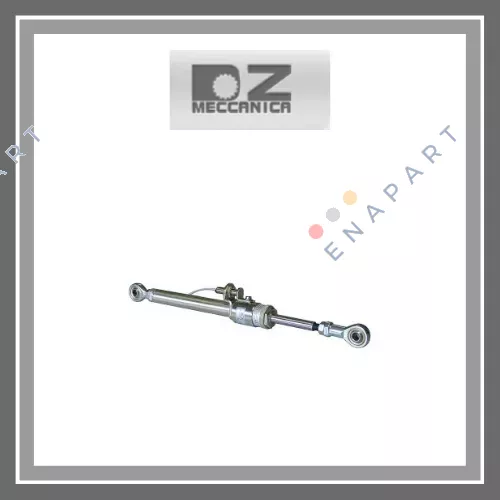

It is usually called “elastic tie-rod”, and finds application in the mechanics of alternative movements (cams and levers).
It is fitted between the drive unit and the driven part, and in case of obstacles or movement faults, it protects the driven part by releasing the movement and signalling the stop by the inductive sensor.

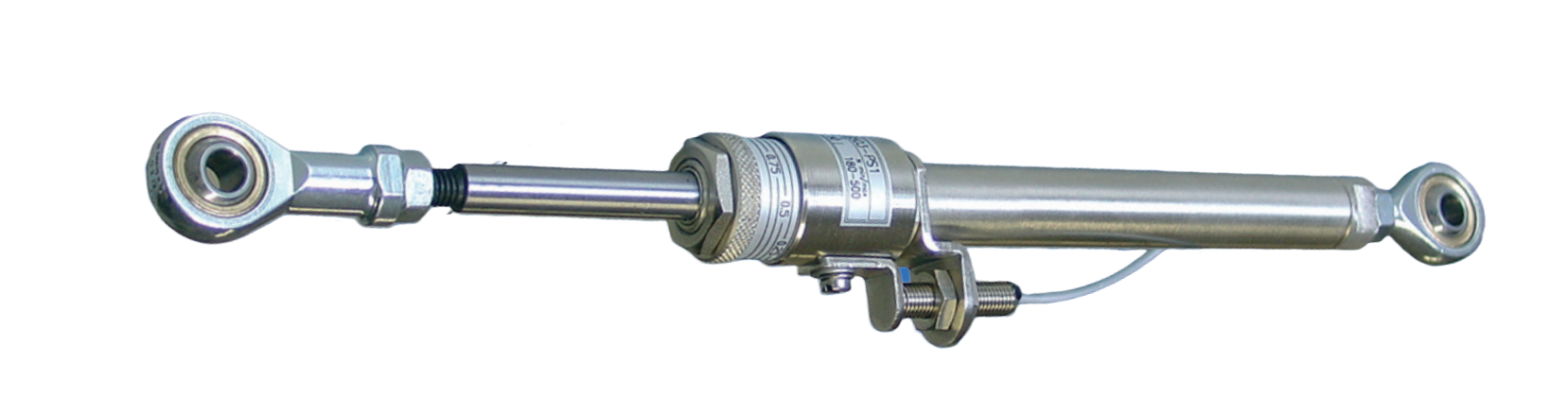

The axial force limiter consists of a telescopic rod made up with two parts joined together by a main body containing the release device.
The connecting element of the two rod parts is made of balls balanced by a pushing mobile ring with suitable pro- file, kept in its position by an adjustable push spring.
On exceeding the preset spring pushing value, the balls move outwards and the two rod parts release. The drive unit keeps on moving, while the driven part stops.
The main feature of the limiter consists of the insertion of a protruding flap on the mobile ring, which allows controlling electrically the ring shift by an inductive sensor, and stopping the drive unit
The type of axial force limiter depends on the disengaging force and on the distance from the kinematic mechanism (LT) (see Table of lengths and weights).
Three versions of axial force limiters are available:
Version B (basic), the fitting of which depends on the user.
Version P with rear hinged end
Version S with rear threaded end for joint fitting
Select model and length LT (interaxle)
Subtract length LT0 (interaxle with stroke 0) from value LT (see Table of lengths and weights). The obtained value corresponds to the sum of strokes A, B, and C.
LT - LT0 = A+B+C
Notes:
When A=0 Axial force limiter for TRACTION only
When B=0 Axial force limiter for COMPRESSION only
When C=0 Axial force limiter for TRACTION only
When (A, B, C)>0 Axial force limiter for TRACTION and COMPRESSION
After choosing the type of operation, so as to cut delivery times, choose values B=C from standard measures as they define the rod length, while value A is the sleeve length.
|
Disengaging force adjustment is performed by turning the ring nut. The ring nut is marked with four marks indi- cating the disengaging force in %, according to the type of spring fitted. Min/max values are listed in the table above. After the adjustment, lock the ring nut with counter-nut.
Product Codes
LA06S-2-PS1
LA08S-2-PS1
LA10S-2-PS1
LA12S-2-PS1
LA06P-2-PS1
LA08P-2-PS1
LA10P-2-PS1
LA12P-2-PS1
LA06B-2-PS1
LA08B-2-PS1
LA10B-2-PS1
LA12B-2-PS1
LA06S-1-PS1
LA08S-1-PS1
LA10S-1-PS1
LA12S-1-PS1
LA06P-1-PS1
LA08P-1-PS1
LA10P-1-PS1
LA12P-1-PS1
LA06B-1-PS1
LA08B-1-PS1
LA10B-1-PS1
LA12B-1-PS1
LA06S-3-PS1
LA08S-3-PS1
LA10S-3-PS1
LA12S-3-PS1
LA06P-3-PS1
LA08P-3-PS1
LA10P-3-PS1
LA12P-3-PS1
LA06B-3-PS1
LA08B-3-PS1
LA10B-3-PS1
LA12B-3-PS1
LA06S-4-PS1
LA08S-4-PS1
LA10S-4-PS1
LA12S-4-PS1
LA06P-4-PS1
LA08P-4-PS1
LA10P-4-PS1
LA12P-4-PS1
LA06B-4-PS1
LA08B-4-PS1
LA10B-4-PS1
LA12B-4-PS1
LA06S-2-PS2
LA08S-2-PS2
LA10S-2-PS2
LA12S-2-PS2
LA06P-2-PS2
LA08P-2-PS2
LA10P-2-PS2
LA12P-2-PS2
LA06B-2-PS2
LA08B-2-PS2
LA10B-2-PS2
LA12B-2-PS2
LA06S-1-PS2
LA08S-1-PS2
LA10S-1-PS2
LA12S-1-PS2
LA06P-1-PS2
LA08P-1-PS2
LA10P-1-PS2
LA12P-1-PS2
LA06B-1-PS2
LA08B-1-PS2
LA10B-1-PS2
LA12B-1-PS2
LA06S-3-PS2
LA08S-3-PS2
LA10S-3-PS2
LA12S-3-PS2
LA06P-3-PS2
LA08P-3-PS2
LA10P-3-PS2
LA12P-3-PS2
LA06B-3-PS2
LA08B-3-PS2
LA10B-3-PS2
LA12B-3-PS2
LA06S-4-PS2
LA08S-4-PS2
LA10S-4-PS2
LA12S-4-PS2
LA06P-4-PS2
LA08P-4-PS2
LA10P-4-PS2
LA12P-4-PS2
LA06B-4-PS2
LA08B-4-PS2
LA10B-4-PS2
LA12B-4-PS2
LA06S-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA06B-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA06P-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA08S-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA08B-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA08P-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA10S-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA10B-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA10P-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA12S-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA12B-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
LA12P-025-050-075-100-150-1-2-3-4-PS1-PS2-M8-M10-M12-M14-M16
