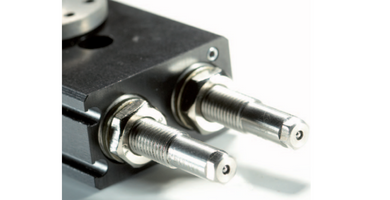

FLANGE SWIVEL UNITS PNEUMATIC
Enapart, with a presence in 14 countries, sources products from around the world to offer you the best possible prices as a local reseller in the United Kingdom . To acquire the best quotation for your desired product, kindly contact us through e-mail or our contact form.
drive
two double-acting pneumatic cylinders
• Maximum torque in both directions of rotation
• Torque up to 1.2 Nm
Swivel angle
• High flexibility due to continuously adjustable swivel angle
from 90° (–3°) to 180° (+3°)
• Integrated fixed stop for optimal repeatability
Power transmission
via rack and gear
• High efficiency due to direct redirection of driving force
Torque
• ground functional parts made of hardened steel guarantee the highest performance
Precision and long service life
• Double ball bearings for high force and torque absorption
Housing
Position query, energy supply, fastening and positioning options integrated in the housing
• Individual installation in the work area due to variable fastening options
and positioning options
• Compact design resulting from the holder integrated into the housing
the position query
• Low design and manufacturing effort for the connection plate
Flat screw surface on the machine side
