APS Air Pilot Switch Valves
Enapart, with a presence in 14 countries, sources products from around the world to offer you the best possible prices as a local reseller in the United Kingdom . To acquire the best quotation for your desired product, kindly contact us through e-mail or our contact form.

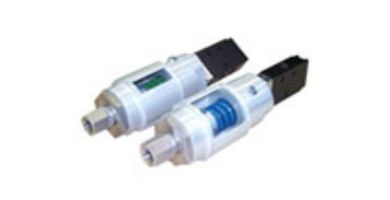

The APS Air Pilot Switch consists of a high pressure sensor operator connected directly to a three-way air valve that can be operated either normally open (passing air) or closed (not passing air). The spring in the sensor applies a counteracting force to the switch and is adjustable within the spring range.
All air pilot switches are subject to deadband conditions, which should be considered when using the valve. A deadband is described as the difference in pressure between a set point of sensing pressure and a pressure at which the air valve returns to the original position. Deadband conditions vary by pressure range in percentage with higher pressure conditions reducing the deadband range.
SC will preset the APS to a specified pressure if requested. Indicate if the switch is to activate under increasing or decreasing pressure condition. Consult SC for more information if needed.
Air pilot switch valves are most commonly used to control automatic "turn on" and "shut off" of a gas booster or pump system and are used in conjunction with a remote pilot on the booster or pump. Other typical applications are for valve actuation, pneumatic alarm systems, or to sequence another system operation after a certain pressure is sensed.
