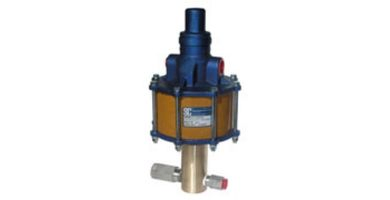

10-6 & D6 Liquid Pump
Enapart, with a presence in 14 countries, sources products from around the world to offer you the best possible prices as a local reseller in the United Kingdom . To acquire the best quotation for your desired product, kindly contact us through e-mail or our contact form.
10-6 & D6 Series pumps have a 7" diameter air piston and a 2 1/2" stroke. Thirteen models are available with pressures up to 65,000 psig.
The maximum air consumption of the pump is 112-SCFM at 100-psi drive-air pressure and free flow (zero outlet pressure), conditions at which the pump operates at maximum speed. As the pump builds outlet pressure, the operating speed, air consumption and liquid outlet flow all decrease. Once the pump reaches the outlet pressure corresponding to its specific pressure ratio, the pump stalls out (stops) and the operating speed, air consumption and liquid outlet flow all become zero.
Mounting may be in any position, vertical preferred. When mounting in an inverted position, a drain cock should be provided to drain off any liquid that may accumulate in the pilot valve air chamber.
The D6 Series "Dry Lube" pump is identical to the 10-6 Series except it is pre-lubricated and therefore does not require an air line lubricator. The part number distinguishes it from the 10-6 Series by the D6 prefix and using the actual ratio rather than a numerical code in the model suffix.
